EV CHARGER INSTALLATION

EV charger installation comes down to one number: the spare capacity in your panel. Charger brand, cable color, app features, none of that changes the circuit. A Level 2 charger set to 48 amps requires a dedicated 60 amp breaker. Dial the same unit down to 32 amps and it runs on 40. Both refill a commuter's battery overnight. Only one may fit a 100 amp service without a panel upgrade. Older services already carrying central air, an electric range, and a water heater are where that ceiling usually shows up, so the load calculation comes before the shopping list.

Gengatorz Power Systems handles electric vehicle charger installation hardwired or on a NEMA 14-50 receptacle, with circuits sized to NEC Article 625, permitted and inspected. Residential garages, driveways, and commercial parking on the same license.

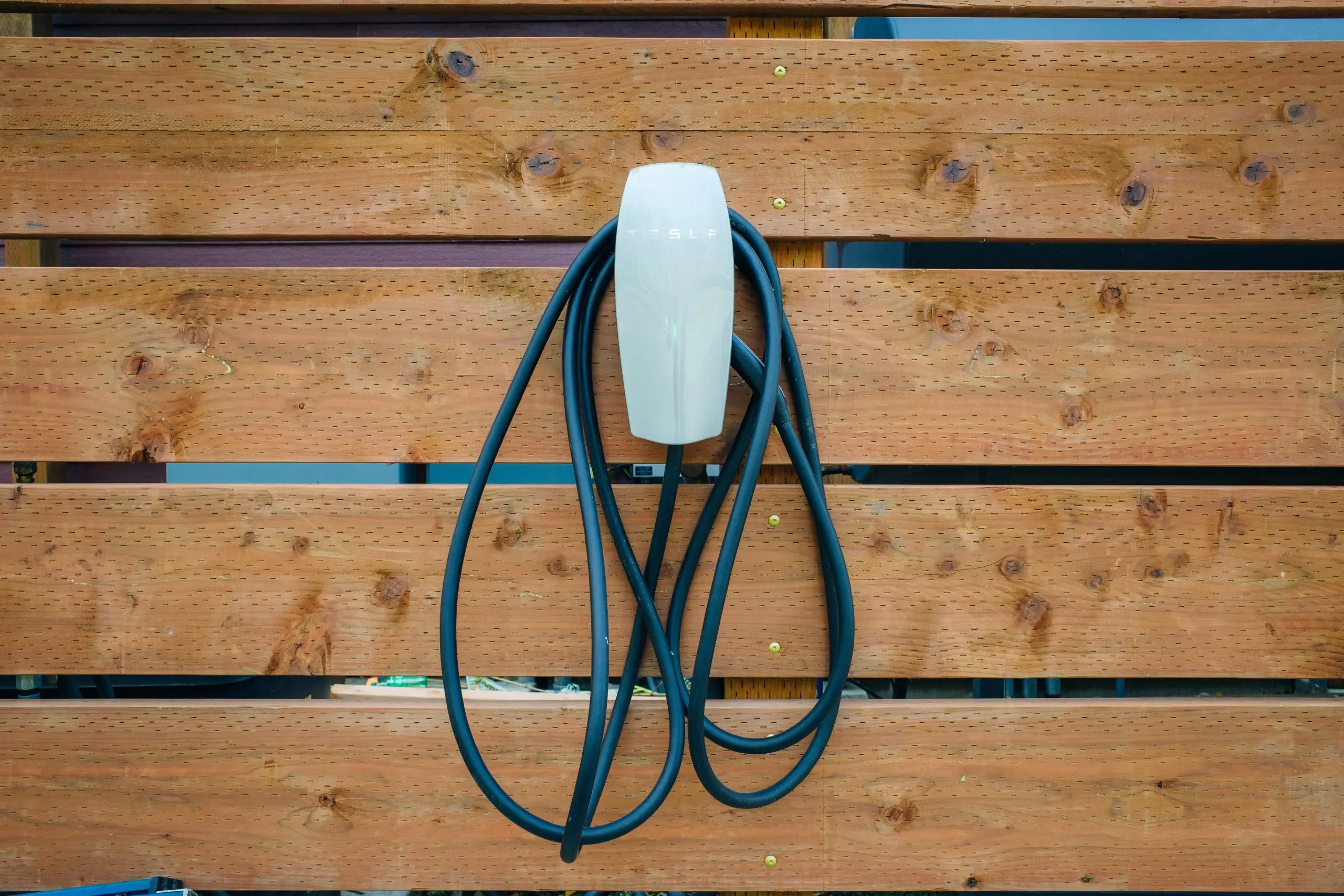

Electric vehicle charger installed at home

TESLA CHARGER AND LEVEL 2 EV CHARGER INSTALLATION

The Tesla Wall Connector is the unit we see most often. It hardwires only, supports up to 48 amps, and ships with a 24 foot cable. The Universal version carries a built in J1772 connector, so it charges a Ford, Hyundai, or Rivian off the same wall. ChargePoint Home Flex, Emporia, Wallbox Pulsar, and Autel MaxiCharger cover most of what customers buy elsewhere.

NACS became the SAE J3400 standard and new EVs ship with that port or an adapter, which makes the charger a long term fixture rather than a bet on one automaker. What actually varies is amperage: 32 amps delivers about 7.7 kW, 48 amps about 11.5 kW.

CHOOSING THE RIGHT CHARGER AND THE RIGHT EV CHARGER INSTALLER

Pick the amperage first, then the unit. With room in the panel, 48 amps is worth the heavier wire. Without it, a load management device can share an existing circuit under NEC 625.42 and usually costs less than a panel upgrade.

Placement is the second decision, and the one people regret. Cable length is capped at 25 feet by NEC 625.17, so the charger has to sit within reach of where the car parks and which side the charge port is on. Outdoor mounts need a weather rated enclosure, and a long run needs larger conductors to hold voltage. An EV charger installer worth hiring puts the breaker, the wire size, the run, and the permit on the quote.

BOOK YOUR EV CHARGER INSTALLATION WITH GENGATORZ POWER SYSTEMS

Two things tell us almost everything: the vehicle you drive and a photo of the inside of your panel door. From there we can say whether the circuit drops in clean, whether load management makes sense, or whether the panel comes first.

Gengatorz Power Systems quotes EV home charger installation for houses and commercial lots, wires it to code, and stays on the job through inspection. The quote covers the breaker and the wire, not just the charger.
